Many once regarded
Nikon’s 10x42 Superior E porro-prism binoculars as the finest ever made. Are
these 12x50’s, the largest in the range, as good?
Nikon
12x50 SE CF Review
As
ScopeViews has grown, a lot of gear has passed through my hands. Inevitably, I
find myself missing some of the optics that move on; Nikon’s 12x50 SE CF
binoculars are a prime example. It is true that since owning the Nikons I have
tested several pairs of higher-power binoculars that are slightly better in
some way, but in all cases only very slightly. Meanwhile, considering price and
value alongside ease of use (including weight and eye relief), build quality
and optical performance, the Nikons still shine.
If
money were no object, then I would probably choose Swarovski’s ELs as a 12x50,
even though they are heavier than the Nikons. But in reality, the asking price
is more than I care to spend on binos for my own use. You may well feel the same. So I thought a
proper review of Nikon’s excellent, but sadly discontinued, 12x50 SEs was long
overdue.
At
A Glance
|
Magnification |
12x |
|
Objective Size |
50mm |
|
Eye Relief |
17.4mm (like other manufacturers’ 20mm+) |
|
Actual Field of View |
5° |
|
Apparent field of view |
55.3° |
|
Close focus |
7m |
|
Transmissivity |
95% est. |
|
Dimensions (L x W) |
182 x 202 mm |
|
Weight |
900g |
Data from
Nikon.

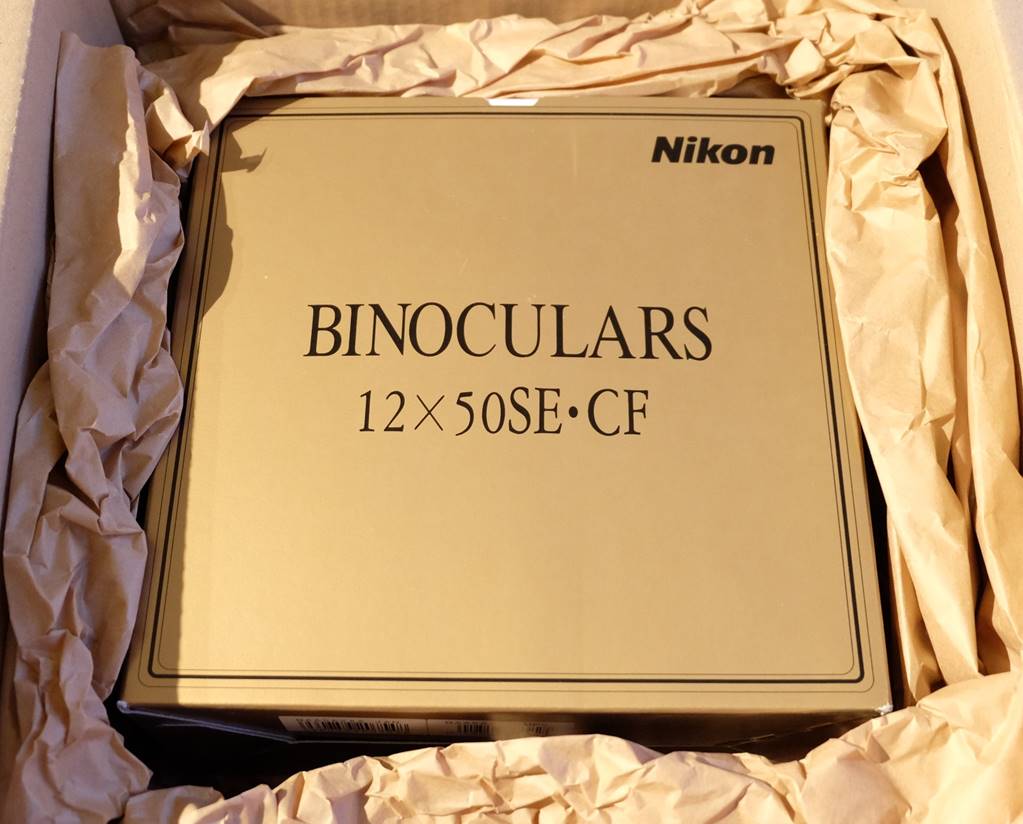

What’s in the Box?
One
area where Nikon can’t compete with Leica, Zeiss and Swarovski is packaging.
Design
and Build
If
you asked most professional binocular repairers to name the best made
binoculars of all time, Nikon’s SE’s would likely come up. I have used several
pairs of SEs over the years and they have all been superbly made of the best
materials. They are conventional, nothing-fancy porros of course, but with
porros so out of fashion, they are likely to remain the most advanced and
refined porro-prism binoculars ever. And what many don’t realise is that porro
prism binoculars remain, in theory at least, the best design from an optical
standpoint because they use fewer lenses (focusing lenses aren’t needed) and no
lossy mirrors.
Nikon’s
SEs came in three sizes, 8x32, 10x42 and these 12x50s. Only the objective
housings vary, the body and eyepieces appear the same. Of the three, the 10x42
are the most general purpose: light and small enough for birding, but with
enough light grasp for astronomy too.

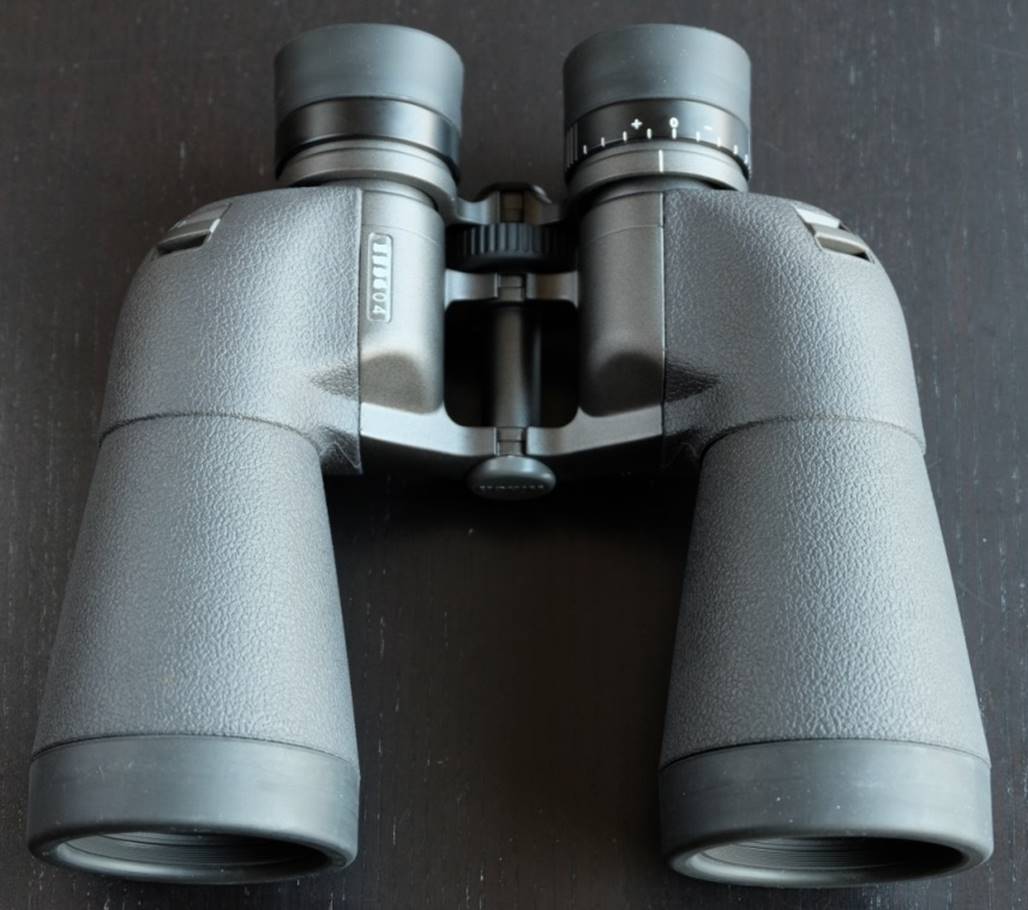

Body
The
Nikons use the same slim prism housing as the others in the SE line (8x30,
10x42s), but add much longer barrels. This does mean that the 12x50 SEs magnify
shakes if you hold them around the prims; instead, grasp them around those long
barrels!
The
body is a conventional centre-focusing design, but made out of magnesium for
lightness (something only the very most expensive roofs boast nowadays).
Weighing just 900g, the Nikon 12x50 SEs are lighter than any of the premium 12x50s
I have tested.
The
body is coated in textured ‘protein’ armour with a quality feel. It’s not as
pretty as leatherette, but is more rugged and doesn’t attract dust as much as
some. The objectives are protected by rubber bumpers on the barrel ends
Nikon
don’t claim waterproofing, but it is clear that the only place water is going
to get in is through the objectives or the eyepieces (which have an ample
cover), so in reality these will probably survive rain but not immersion.
Overall build quality is very high and reminiscent of the High Grade line of
roof prism binoculars from Nikon. Interestingly, the bridge bears the
designation ‘HGP’, so I suspect that Nikon view these as a porro-prism
equivalent to their ‘high-grade’ roof-prism line. Overall, the SEs have a very
solid look and feel, but lack the premium elegance of Leicas or Swarovskis.
Focuser
The
focuser is typical of ‘granddad’ binoculars – a central knob moves the
eyepieces in and out to focus. This may sound old-fashioned, even primitive,
but means no extra focusing lenses are needed internally, unlike most roofs.
The
focus is slower than the latest roof prism models, but loses nothing in
precision or smoothness. Some Nikon SEs I have tried suffered from a stiff
focuser, but not these: the focuser is buttery smooth and perfectly weighted.
The
dioptre adjustment isn’t centralised: you twist the right eyepiece in
traditional style; but again, it’s smooth and just stiff enough to prevent
accidental movement.
Optics - Prisms
The
SEs have simple old-fashioned porro prisms that bend the light around by total
internal reflection. That means these don’t need special mirror or phase coatings
to deliver a sharp, bright view (unlike most roof prisms).
Optics – Objectives
The
SEs have simple cemented Fraunhofer doublet objectives, like most porro-prism
binoculars. I have no idea whether they use ED glass, but chromatic aberration is
well controlled in all the SE models, much better than in most other designs
from the days before HD lenses.
Looking
behind the objectives, the barrels have ridges machined in and are
super-flat-black coated inside. The prism housings have proper machined-in
baffles. Internal construction generally appears to be of the highest quality.
Subjectively,
the coatings on the SE objectives remain among the best I have ever seen on any
binoculars. They don’t have the dirt-shedding properties of the latest coatings
from Leica, Zeiss and Swarovski and deliver a slightly ‘warm’ toned image, but
the Nikons’ are as transparent as the best.
The
simple combination of doublet objectives, mirror-less porro prisms and premium
coatings make for the best possible overall light transmission at around 95%.

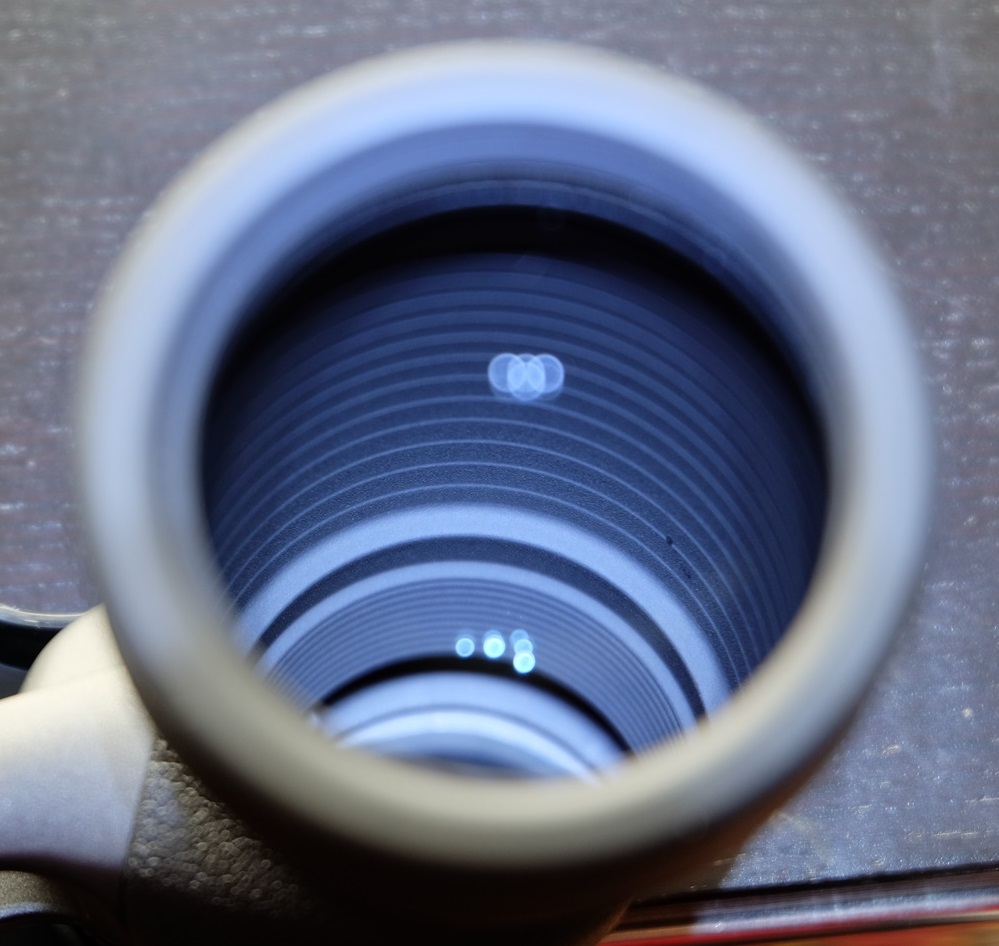

Baffles
machined into the barrels and prism housing do a good job of limiting stray
light.

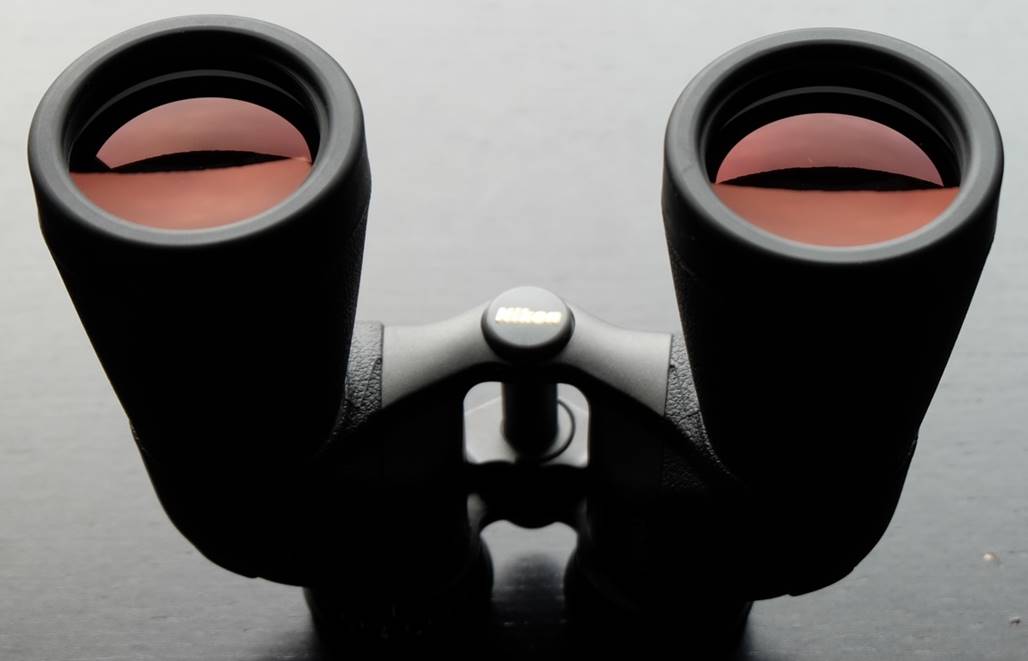

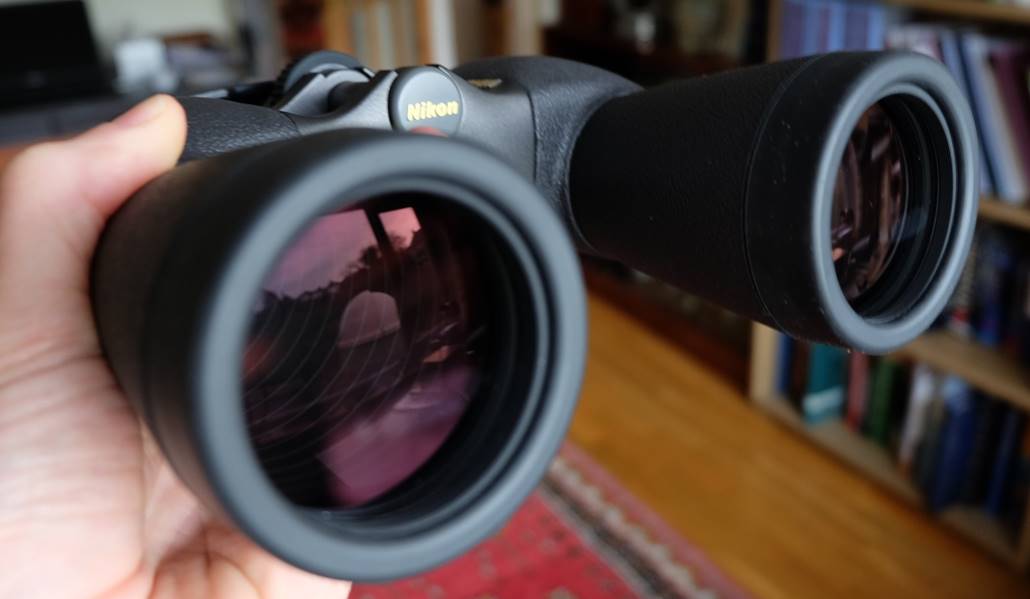

Nikon
SE’s coatings are among the very best.

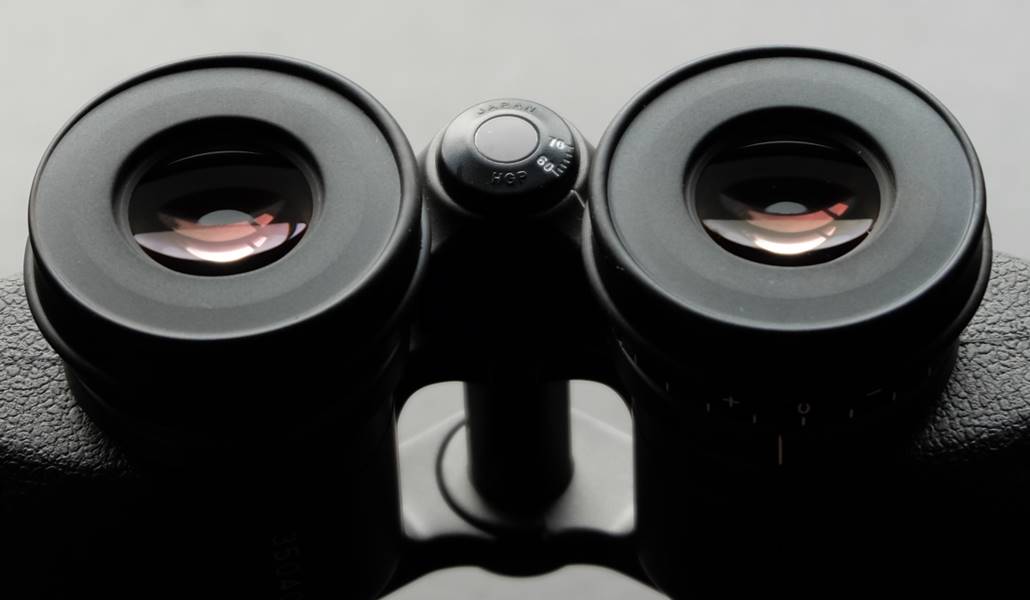

Nikon
SE’s folding rubber eyecups.

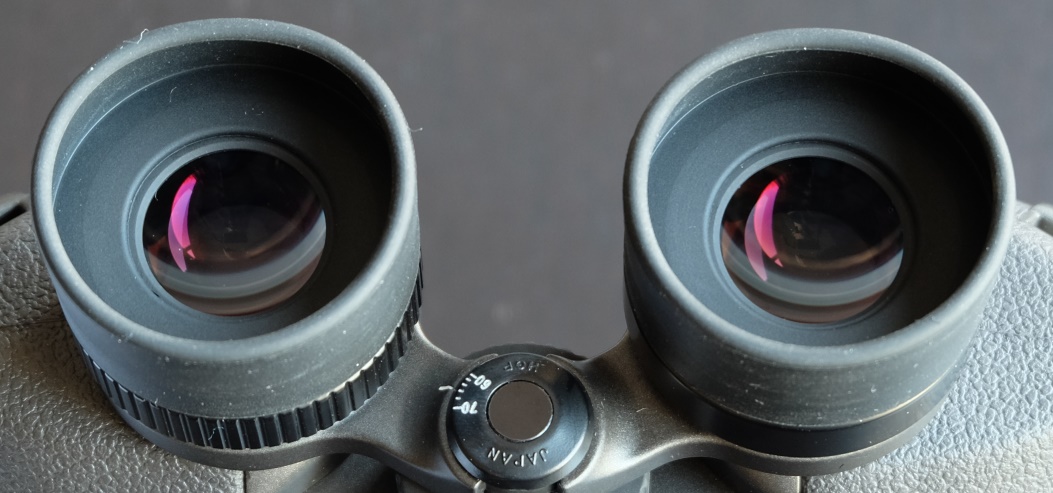

Optics – Eyepieces
The
eyepieces are large and are reputedly a complex multi-element design. The SEs
were an early adopter of field-flattener lenses and so provide a reasonably
wide (60°), flat field.
Eye
relief is excellent. I’ve warned before that eye relief can’t be compared
across manufacturers and the SEs are a case in point. Nikon’s official figure
of 17.4mm is less than Swarovski claim for their Swarovision ELs, but in
reality the Nikons have more and so are super-comfortable with glasses. The
downside with all that eye relief is spherical aberration of the exit pupil –
kidney bean blackouts; as you move your eye around, the view will suddenly
disappear for a moment, but you quickly ‘learn’ to avoid this.
Unfortunately,
Nikon opted for ‘traditional’ fold-down rubber eyecups on the SE. The problem
is that with so much eye relief and only two adjustment positions, up or down,
these are neither as convenient nor functional as twist-up eyecups, but if you
wear glasses like me, you’ll just roll ‘em down and keep ‘em that way.
One
other minor source of nit-picking frustration is the objective caps. These are
not stay-on like many premium makers now employ and they have been incredibly
difficult to prize off on both new pairs of 12x50 SEs I’ve owned. My used 10x42
SEs were better though; maybe they loosen with use.

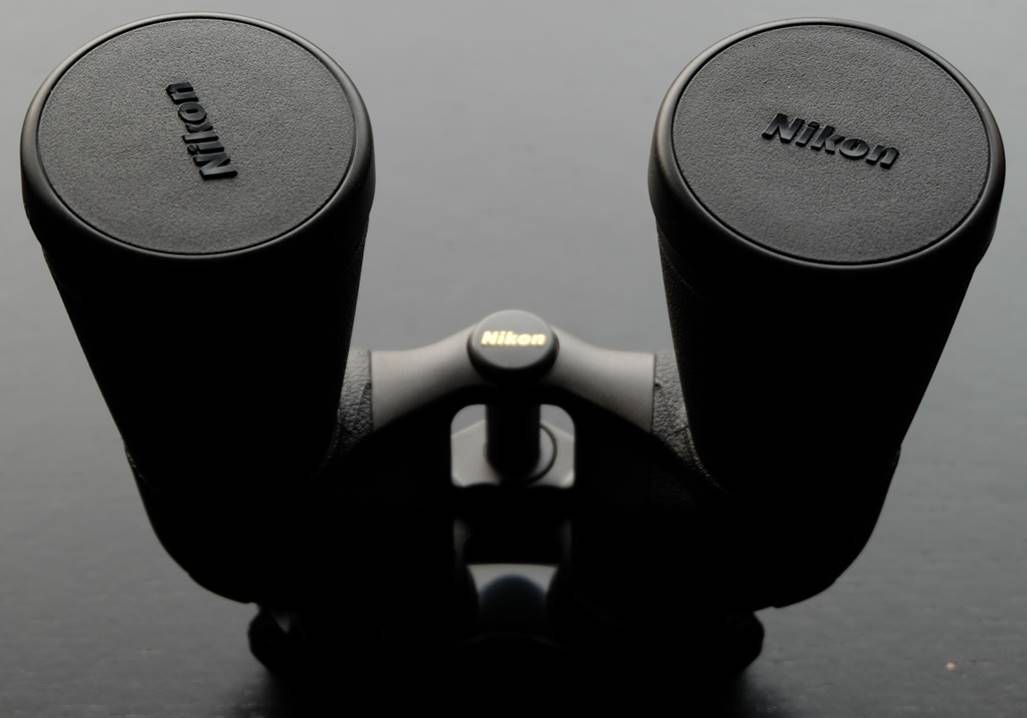

The
SE’s objective lens caps aren’t stay-on, but are a real pain to prize off, at
least when new.

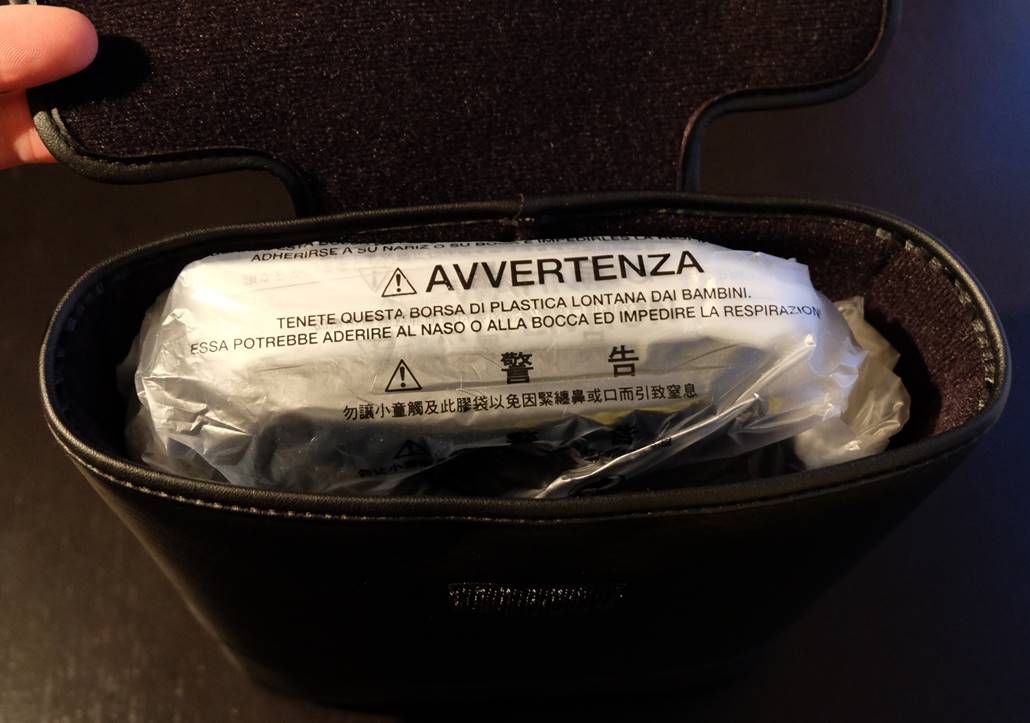

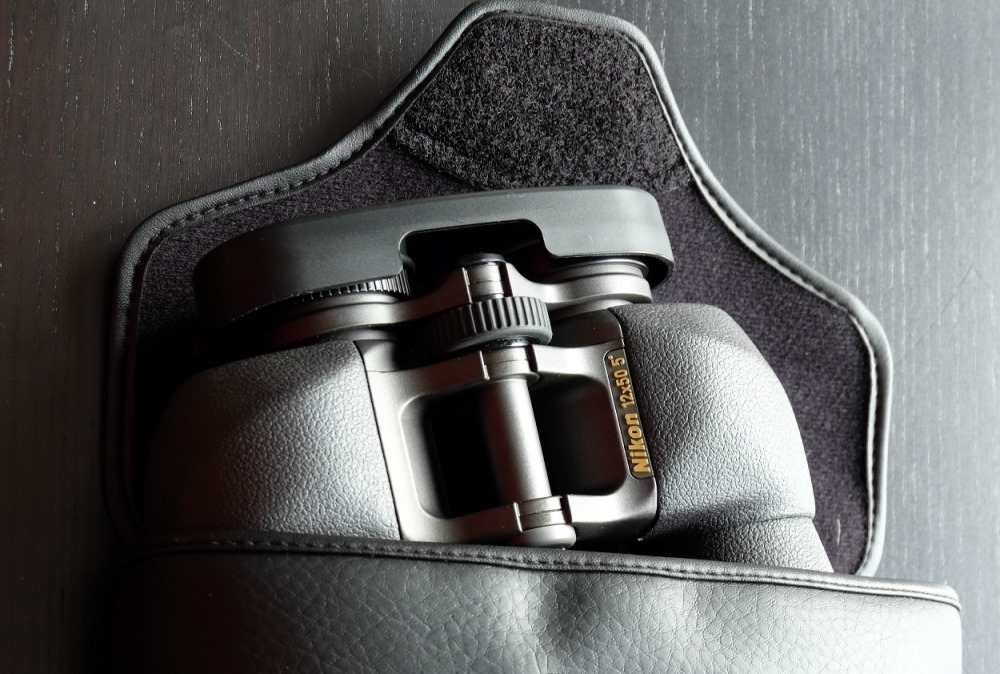

That
case is a quality item, but isn’t on vegan trend.

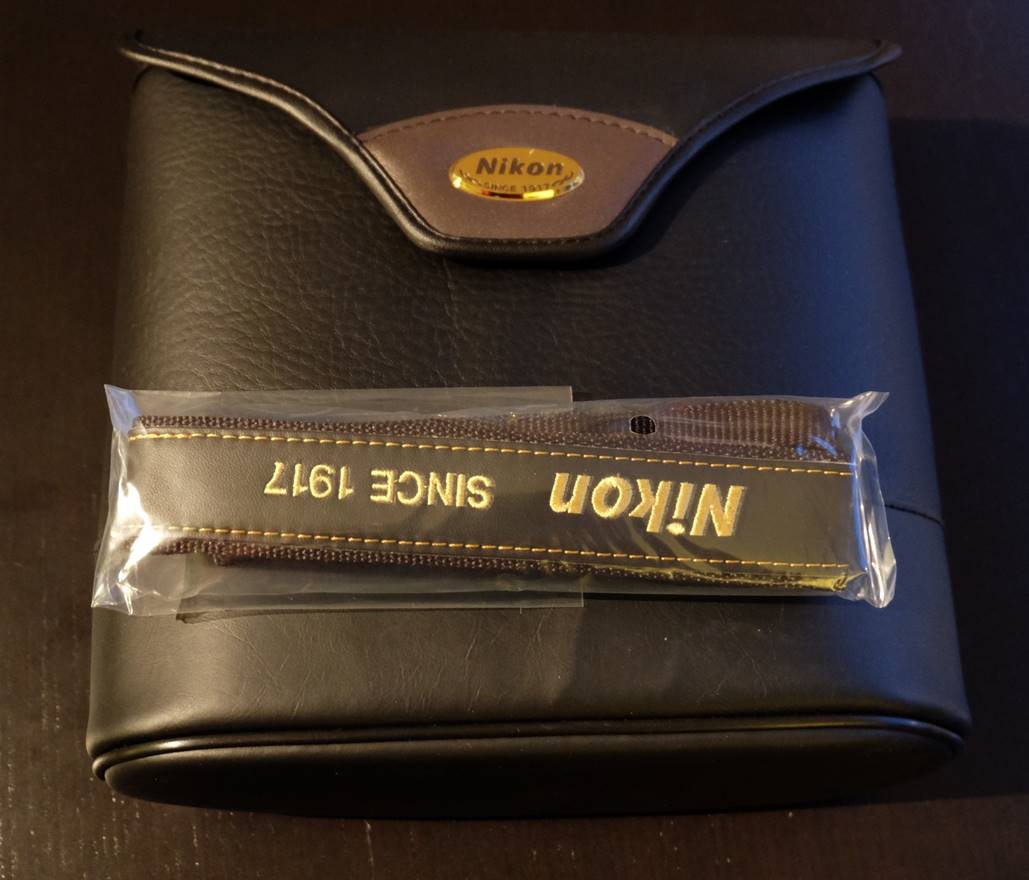

Accessories
The
SEs come with a nice part-leather strap and a soft leather case of very high
quality.
In
Use – Daytime
Ergonomics
The
light weight of the Nikons makes them easier to handle than most 12x50s, though
for best results you need to hold them around the objectives, in which case the
focuser is no longer to hand, as my daughter pointed out.
The
protein armour is comfortable to hold and warmer than some on a cold night and
general comfort is good. Eyepiece comfort is good for glasses-wearers like me,
but kidney-bean blackouts are a nuisance during the day and more troublesome at
night. The focuser is smooth and precise, but a bit slow for following birds on
the wing.

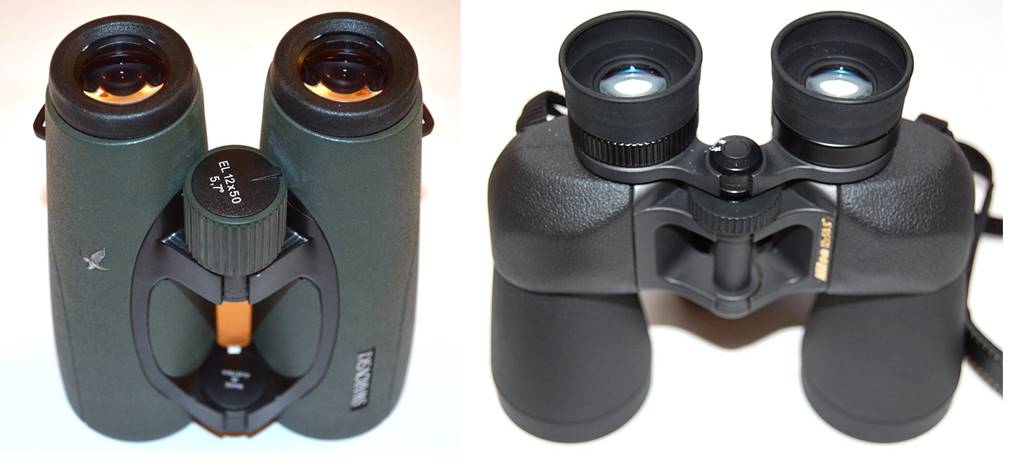

In
terms of elegance and prestige, these have no chance against a pair of Leica’s
Ultravid 12x50s.
There’s
no getting away from it - Nikon’s 12x50 SE look big and geeky hanging around
your neck.
The View
The
view through the 12x50 SEs is immediately impressive in the daytime, unlike
many high power binoculars: sharp, flat, bright and detailed.
Brightness
is up there with the very best as expected from its design and excellent
coatings; in full daylight it is as bright as any you put it up against. Why is
this test important? In bright conditions, your contracted pupil stops down the
exit pupil of almost any binocular. You can then compare, say, a 7x42 with a
12x50 to find out which transmits most of the light it gathers, regardless of
objective size. Tested in this way, the 12x50 equals my Zeiss 7x42s – one of
the brightest binoculars around – and is brighter than most others.
Colour
rendition is excellent and neutral. Resolution appears very good and the optics
snap to a perfect focus in a way only the finest binocular optics do. Looking
at autumn leaves in the trees across the way is an immersive experience due to
the sharpness and resolution. The widely spaced porro-style objectives that
give a greater 3D effect than slimmer roof-prism designs.
In
daylight, it is very hard to produce flare or ghost images, even viewing into
(but obviously not directly at) the Sun. Contrast is superb, so picking out
white Egrets far out on the bright bay sands, is easy.
Flat Field?
In
daylight, the field flattener delivers a sharp field right to the edge, so you
can view things right on the field stop, unlike many binoculars that have a
curved focal surface or show other aberrations near the field edge. After using
these, you really notice the curved field of Zeiss’s Victorys, or Leica’s
Ultravids, for example.
Chromatic Aberration
Chromatic
aberration is not as perfectly corrected as in the latest premium HD models,
but to notice this you need to look at something dark silhouetted against a
bright sky on a cloudy day. Then you’ll see some traces of green and purple
fringing that isn’t there in the latest Swarovski 12x50 ELs.
Generally,
though, chromatic aberration is not a problem with these binoculars and you
don’t notice it in ordinary use. It’s as well corrected as a modern mid-range
HD design, like Leica’s Trinovids.
Overall the Nikon 12x50 SEs still come close
to the latest and very best higher-powered designs from premium makers in the
daytime.
In
Use – The Night Sky
In
the centre of the field star images are very tight. Careful examination reveals
that astigmatism increases gradually off axis from about 60-70% field width;
but compared with many binos, off-axis aberrations is well controlled. The
whole field appears well corrected in general use with a dusting of fine stars
under dark skies that attest to the high light-transmittance of these binos, whilst
stars generally have a pleasing intensity and sparkle. The very brightest stars
do however show a bit more spiky flare than they do with fine roof-prism
binoculars, something I’ve noticed before that may be inherent to porro prisms.
The Moon
The
Moon looks good through the Nikons: pin-sharp and grey-white (not the yellow
tint you sometimes get), with no flare or false colour and great resolution. It’s
a bit like the low power view in a good astronomical telescope.
At
12x magnification, significant lunar detail becomes visible, enough to make it
worthwhile getting out your lunar atlas (or app). Lean on something for support
to kill those high-power shakes a bit and you could explore the major lunar features
with these in a way you couldn’t even with 10x binoculars.
Deep Sky
The
best light throughput, flat field and great contrast make the Nikons good for
deep sky. The chain of clusters running up through Auriga (M35-M38) look large
and bright and begin to resolve into stars. Finding the Dumbbell Nebula is
easy, as are the larger globular clusters like M15 and M13. The Pleiades
sparkle and M42 shows its curving arms of nebulosity and bright core.
The
12x50 SE’s high contrast seems to work particularly well on larger galaxies,
like M31 and M33, which look better than in almost any other binocular I can
think of, with sufficient power to darken any sky glow, but enough field width
to take in the whole galaxy.
Star
colours are very intense through the SEs, making them pleasurable for casual
sweeping as well as ‘serious’ DSO hunting.
Planets
Jupiter’s
Galilean Moons are easy to pick out, even when close in. Jupiter itself shows a
tight disk with just a little flare and minimal chromatic aberration. Venus
flares enough to obscure its phase, as it almost always does through binoculars.
Overall, planets do show a little more flare than with the very best roof prism
models.
Swarovski 12x50 EL vs Nikon 12x50 SE
Swarovski’s
12x50 ELs are some of the most perfect high-power binoculars I have tested to
date. A summary of the (mostly quite subtle) differences between these two fine
12x50 binoculars follows:
·
The Nikons are
10% lighter at 900g, compared with 998g for the ELs. This weight difference is
noticeable in use.
·
The new ELs
actually have several mm less eye
relief than the Nikons, but less blackouts to compensate.
·
The ELs have a
significantly wider field at 5.7°vs 5° for the 12x50 SEs.
·
The ELs’ field is
even flatter than the Nikons’.
·
The ELs have a
slightly cooler colour balance that is even noticeable if you project the exit
pupil onto white paper.
·
The ELs have
slightly less chromatic aberration.
·
The Nikons may be
a tad brighter, in keeping with their greater light throughput.
·
Both are equally
well-controlled for ghosting and stray light, but neither is quite class
leading in this respect.
·
The Swaros
control spiking and flare a little better, delivering planetary views that are
more like a telescope.
·
The ELs focus
much closer.
·
The ELs are fully
waterproof, the Nikons are not.
·
The Swarovskis
cost three-four times as much as the Nikons.
·
Build quality of
the Nikons is every bit as good as the Swarovskis’.
Swarovski 15x56 SLC ‘Neu’ vs Nikon
12x50 SE
Swarovski’s
15x56s ‘Neu’ (confusingly now the old pre-SLC model) were my main astronomy
binoculars for a few years. They were a contemporary of the Nikon SEs and the
comparison is interesting.
There
is no doubt that the Nikons, with their lighter weight, wider, flatter field
and lower power (hence less shakes) give an easier view; their greater eye
relief helps too. They also seem to give stars more sparkle and perhaps
stronger colours (though a little more flare as well). If the aesthetics of
star-field sweeping is your thing, you’d choose the Nikons.
However,
there is also no doubt that finding faint fuzzies is much easier in the bigger
binoculars. The Ring Nebula (M57) is easy in the 15x56s; much tougher to pick
out in the Nikons. Likewise, the Dumbbell is easier to find in the bigger
binos, as are smaller globular cluster, like M56. Turning to the Double
Cluster, it is just more populous seen through the Swarovski 15x56s, whilst
dimmer open clusters, like M38 in Auriga, are more easily resolved into stars.
So if you like popping out for an impromptu Messier Marathon, you would choose
the big-eye Swarovskis.
Summary
Discounted,
this pair of Nikon 12x50 SEs came in at exactly a quarter of the real-world
price of Swarovski’s wonderful 12x50 ELs when new. They have been discontinued
for a while and come up less frequently than the 10x42 model. But the used
price would still be a quarter of the Swarovski’s.
Yes,
the Swarovski’s are slightly closer to optical perfection, but they are still
heavier and slightly dimmer; you could never say they were worth it, unless you need waterproofing for serious
nature viewing or birding as well (or unless money is no object).
So,
whilst the 12x50 SEs are not a state of the art design, they remain a superb
binocular: light, bright and sharp, with a flat field, minimal chromatic
aberration, lots of eye relief and a fairly wide field. For hand-held
astronomy, that overall package is still amongst the very best.
Unless
you are prepared for the weight and shakes of a 15x56, the peculiarities of
high-power image stabilisers, or need full waterproofing, these old Nikons
remain an excellent used buy for astronomy, even though they aren’t as
general-purpose as the 10x42 SEs.
Nikon’s
12x50 SEs remain very highly recommended and were once my astronomy binocular
best buy.
